Diamondback

Release 5C

$5,850.00

SIZE: SM/15.5 5'4" - 5'7"
Description

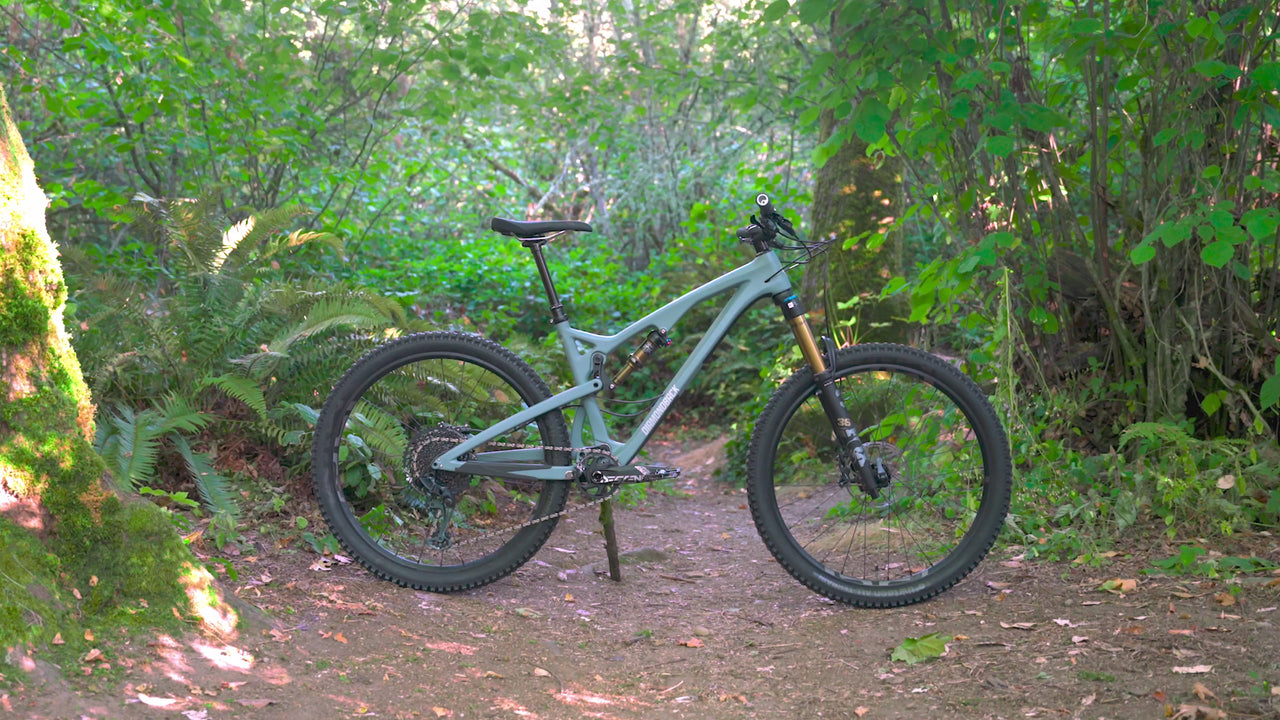

You can’t have it all … Really? Nobody told that to the Release 5C. Our top-shelf trail bike is the embodiment of new-school technology. Thanks to our Level Link suspension, the Release 5 C absolutely levels the kind of drops and rock gardens that stymie bikes with even more suspension travel. At the same time, our patent-pending design allows the Release to accelerate and climb with the kind of blazing efficiency you’d normally expect from a wispy, featherweight race rig. The Release 5C, in a nutshell, is the perfect all-rounder. The bike’s performance geometry — long in the front, short in the rear, low in the bottom bracket —lends the bike stability at high speeds without sacrificing agility when the trails get tight. What’s more, we’ve decked this machine out with a peerless parts kit that includes the absolutely bomber Fox 36 Factory Float fork and Fox Factory Float DPS rear shock, an ultra-precise SRAM GX Eagle 12-speed drivetrain, a tubeless ready wheelset with e*thirteen LG1 EN rims and Novatec hubs, and quick-stopping SRAM G2 RS hydraulic disc brakes with 180mm rotors. A KS Rage-I dropper post and Race Face cockpit components round out the stellar package.

Shipping & Returns

Multiple shipping options depending on your location. Free shipping on all bikes over $650 - all bikes below $650 will have a $49 shipping change per bike.

30-day return window, terms and conditions apply. See the Returns page for more details

SIZE: SM/15.5 5'4" - 5'7"
Crankset

The SRAM Descendant 7K Eagle crankset features 7K aluminum construction, DUB technology, Boost 148 spacing, and includes a direct mount 32T sprocket, ensuring smooth power transfer and seamless compatibility with Eagle drivetrains.

Fork

The Fox 36 FLOAT 27.5" features 150mm travel, a Grip 2 damper with HSC, LSC, HSR, and LSR adjustments. With Kashima coating, a 15QRx110 axle, 1.5" tapered steerer, and 44mm rake, it delivers precision and control.

Rear Derailleur

The SRAM RD GX Eagle rear derailleur offers precise 12-speed shifting, X-Horizon technology, and Cage Lock for easy wheel removal. Designed for durability and smooth performance, it’s perfect for aggressive trail and enduro riding.

SPECIFICATIONS
FRAME

Carbon Release 27.5, Monocoque Carbon Front and Rear Triangle, 130mm Travel, Level Link Suspension Platform, Euro Standard Threaded BB, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube, Post Mount Disc Tabs

COG SET

SRAM XG-1275 Eagle, 12 Speed, 10-50T

PEDALS

DB CNC Platform, Sealed Cartidge Bearing w/Replaceable Pins

REAR SHOCK

Fox Factory Float DPS, 3 Position Lever w/Open Mode Adjust, EVOL LV, 200x57mm, 22.2mm Eyelet Width

CHAIN

SRAM GX Eagle, 12 Speed

HANDLEBAR

Race Face Turbine R, 780mm Wide, 20mm Rise, 35mm Bar Bore

FORK

Fox 36 Factory Float, 27.5", 150mm Travel, GRIP2, 3 Position Damper, Rebound Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle

FRONT HUB

Novatec XD641, 28h Aluminum110x15mm Boost Thru-axle, Sealed Cartridge Bearing

GRIPS

Ergon GE10 Evo Lock-On

HEADSET

FSA No. 57 Sealed Cartridge

REAR HUB

Novatec XD642, 28h Aluminum Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, w/CNC Disc Mount, XD Cassette Body

STEM

Factor Components F355, 35mm Reach, 35mm Bar Bore

CRANKS

SRAM Descendant 7K Eagle w/32T Direct Mount

SPOKES

2.0/1.8/2.0 Butted Stainless Steel

SEAT

WTB Volt Chromoly SL

BOTTOM BRACKET

SRAM DUB Outboard Bearing

RIMS

E*Thirteen LG1 EN Plus, w/TRS Plus Aluminum 27.5", 30mm internal width, 28h, Taped for Tubeless

SEATPOST

KS Rage-I, Internal Dropper, 31.6 w/Westy 1x Remote

FRONT DERAILLEUR

MRP XCG V2 Aluminum Bash Guard, 32T, ISCG-05

TIRES

E*Thirteen TRS Race All-Terrain, Tubeless Ready, 27.5x2.4"

EXTRAS

Tool Kit, DB Shock Pump, Tubeless Valves, DB Mud Guard, Chainstay Protector, Carbon Paste

REAR DERAILLEUR

SRAM GX Eagle, 12 Speed

BRAKE LEVERS

SRAM G2 RS

PRODUCT ID
SHIFTER

SRAM GX Eagle, 12 Speed

* Specifications are subject to change without notice
