Diamondback

Haanjo 5

$2,950.00
Size: XS/47 5'1"-5'4"
Description

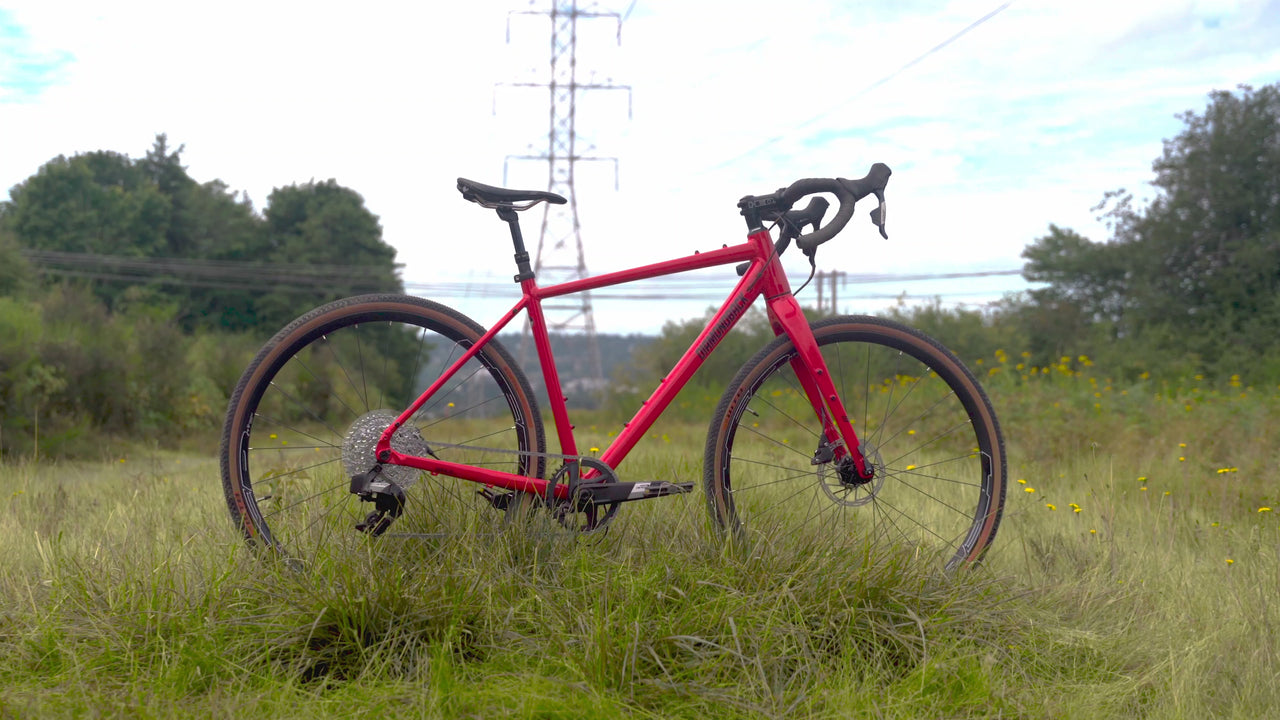

You’re lost. And that’s a good thing because the Diamondback Haanjo 5 is a gravel bike designed to help you get off the beaten track. That’s why we built it around our trustworthy 6061 alloy frame and carbon fork with thru axles front and rear. The path off road is rarely flat and smooth. Accordingly, we outfitted this beast with plenty of gears as well as HED Tomcat wheels with grippy WTB Vulpine 700×40c tires. Finally, we’ve updated this ride to include SRAM Apex AXS eTap 1×12 drivetrain components and a Kind Shock dropper post, giving you more control when you need it. Looking for your next great adventure? When the road turns bad, this bike gets really good.
Shipping & Returns

Multiple shipping options depending on your location. Free shipping on all bikes over $650 - all bikes below $650 will have a $49 shipping change per bike.

30-day return window, terms and conditions apply. See the Returns page for more details
Size: XS/47 5'1"-5'4"
Crankset

The SRAM Apex DUB Wide 40T crankset features a 40T chainring and DUB technology for enhanced stiffness and durability. Ideal for gravel and adventure bikes, it provides reliable power transfer and smooth performance.

Fork

The DB Gravel Performance frame features full monocoque carbon construction, carbon 12mm thru-axle dropouts, and flat mount disc compatibility. With a tapered steerer tube, it delivers lightweight, durable performance for gravel riding and off-road adventures.

Rear Derailleur

The Apex XPLR AXS D1 MAX 44T features a 44T chainring and 12-speed electronic shifting. Ideal for gravel and adventure bikes, it offers precise, reliable performance for tackling diverse terrains with smooth, responsive gear changes.

SPECIFICATIONS
FRAME

DB Alloy Gravel Frame, Endurance Geometry, Fully Butted 6061-T6 Aluminum Formed Top Tube, Tapered Headtube, Flat Mount Disc, 142x12mm Thru-axle, Top Tube Bag Mounts, w/Replaceable Hanger

COG SET

Sram PG-1230 11-44

PEDALS

DB Resin Gravel Platform

REAR SHOCK
CHAIN

SRAM Apex

HANDLEBAR

HED, 7050 Aluminum 12 Degree Flare, 31.8mm Bar Bore

FORK

DB Gravel Performance, Full Monocoque Carbon, Carbon 12mm Thru Axle Drop Outs, Flat Mount Disc ready, w/Tapered Steerer Tube

FRONT HUB

24h Aluminum Sealed Cartridge, Center Lock, 12mm Thru-axle

GRIPS

Diamondback Endurance Gel Tape

HEADSET

FSA No.42, Sealed Cartridge

REAR HUB

24h Aluminum Sealed Cartridge, Center Lock, 142x12mm Thru-axle, Cassette

STEM

HED, 6061 Aluminum 3D Forged, +/-7° Rise, 31.8 Bar Bore

CRANKS

SRAM Apex DUB Wide, 40T

SPOKES

2.0/1.8/2.0 Butted Stainless Steel

SEAT

WTB Gravelier, Cromoly Rail, 142x250

BOTTOM BRACKET

SRAM DUB BSA

RIMS

HED Tomcat Disc, 24h, 25mm Internal Width, Taped for Tubeless

SEATPOST

Kind Shock eTENi 27.2 Dropper, 65mm (XS,SM,MD) 100mm (LG,XL) travel

FRONT DERAILLEUR
TIRES

WTB Vulpine, Dual DNA Compound, TCS Light Tubeless Casing 700x40c

EXTRAS

Tool Kit, Tubeless Valves, Frame / Chainstay Protector

REAR DERAILLEUR

Apex XPLR AXS D1 MAX 44T

BRAKE LEVERS

SRAM Apex Hydraulic

PRODUCT ID

5078

SHIFTER

SRAM Apex AXS eTap, 12 Speed

* Specifications are subject to change without notice
