Diamondback

Release 4C

$4,750.00
SIZE: SM/15.5 5'4" - 5'7"
Description

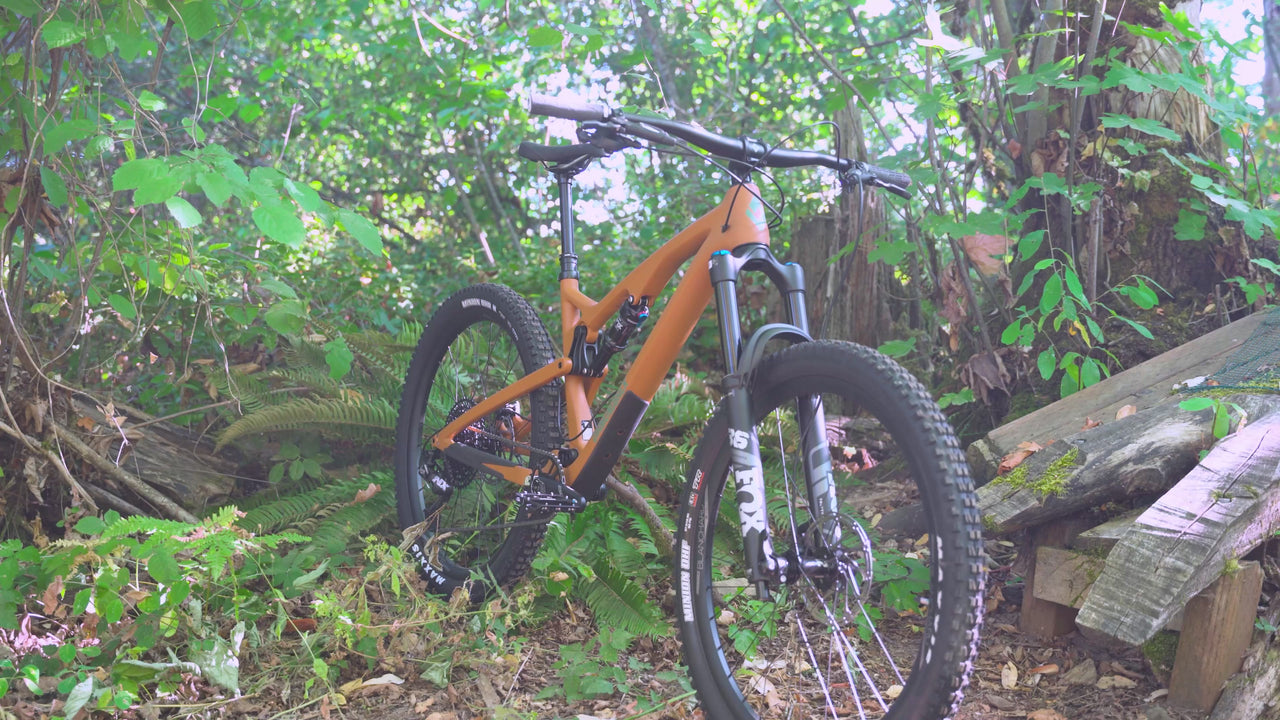

The Release 4C features the same bottomless-feeling rear suspension and deft handling as our aluminum Release models, but with an even lighter, stiffer chassis built from carbon fiber. It starts with our Level Link suspension system, which isolates chain forces from trail inputs, meaning the suspension doesn’t bob when you stomp on the pedals, yet becomes extremely plush on technical descents. For smooth bump-eating performance, the Release 4C is equipped with a Fox Float DPS EVOL LV rear shock and a 150mm travel Fox 36 Performance Float fork. SRAM’s NX Eagle 12-speed single-ring drivetrain provides consistent shifting and, thanks to its 50-tooth granny gear, makes short work of pesky climbs. SRAM G2 R brakes keep you slicing through the most technical lines all day long and tubeless ready Maxxis Minion tires will keep you rolling with confidence.
Shipping & Returns

Multiple shipping options depending on your location. Free shipping on all bikes over $650 - all bikes below $650 will have a $49 shipping change per bike.

30-day return window, terms and conditions apply. See the Returns page for more details
SIZE: SM/15.5 5'4" - 5'7"
Crankset

The SRAM Descendant 6K Eagle crankset features durable 6K aluminum construction and DUB technology for optimized stiffness. Designed for aggressive riding, it ensures smooth power transfer and compatibility with Eagle drivetrains.

Fork

The 2023 Fox 36 FLOAT 27.5" offers 150mm travel, a Grip 3-position damper, and a 44mm rake. With a 15QRx110 axle and 1.5" tapered steerer, it delivers precision and control for aggressive riding.

Rear Derailleur

The SRAM NX Eagle rear derailleur delivers smooth, reliable 12-speed shifting with a wide-range cassette. Featuring X-Horizon and Cage Lock technology, it ensures precise chain control and durability for all-mountain and trail riding.

SPECIFICATIONS
FRAME

Carbon Release 27.5, Monocoque Carbon Front and Rear Triangle, 130mm Travel, Level Link Suspension Platform, Euro Standard Threaded BB, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube, Post Mount Disc Tabs

COG SET

SRAM PG-1230 Eagle, 12 Speed, 11-50T

PEDALS

DB CNC Platform, Sealed Cartidge Bearing w/Replaceable Pins

REAR SHOCK

Fox Float DPS EVOL LV, Performance, 3 Position Lever, 200x57mm, 22.2mm Eyelet Width

CHAIN

SRAM NX Eagle, 12 Speed

HANDLEBAR

DB35 Aluminum 780mm Wide, 15mm Rise, 35mm Bar Bore

FORK

Fox 36 Performance Float, 27.5", 150mm Travel, Grip 3 Position Damper, Rebound Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle, 44mm Offset

FRONT HUB

Novatec SL-Team, 32h Aluminum Boost 110x15mm Thru-axle, Sealed Cartridge Bearing

GRIPS

Ergon GE10 Evo Lock-On

HEADSET

FSA No. 57 Sealed Cartridge

REAR HUB

Novatec SL-Team, 32h Aluminum, 148x12mm Thru-axle, Sealed Cartridge Bearing

STEM

Factor Components F355, 35mm Reach, 35mm Bar Bore

CRANKS

SRAM Descendant 6K Eagle w/32T Direct Mount

SPOKES

14g Stainless Steel

SEAT

WTB Volt Chromoly

BOTTOM BRACKET

SRAM DUB Outboard Bearing

RIMS

Diamondback Blanchard 28R, Taped for Tubeless, 32h

SEATPOST

KS Rage-I, Internal Dropper, 31.6 w/Westy 1x Remote

FRONT DERAILLEUR

N/A

TIRES

Maxxis Minion DHF 27.5x2.3" EXO, TR (Tubeless Ready), Folding / Maxxis Minion DHR 27.5x2.3" EXO, TR (Tubeless Ready), Folding

EXTRAS

Tool Kit, DB Shock Pump, Tubeless Valves, DB Mud Guard, Chainstay Protector, Carbon Paste

REAR DERAILLEUR

SRAM NX Eagle, 12 Speed

BRAKE LEVERS

SRAM G2 R

PRODUCT ID

4751

SHIFTER

SRAM NX Eagle, 12 Speed

* Specifications are subject to change without notice
